Replacement Tank 140L LRA| Ford Ranger 23+ / VW Amarok 2023+ | Diesel

Unleash the Potential of Your Pickup Truck: Autonomy LRA for Ranger and Amarok

• FRDCPYR Brochure (Amarok)
• FRDCPYR Brochure (Ranger PY)
• FRDCPYR Installation Instructions

For owners of Ford Ranger (PY Series 2022+) and Volkswagen Amarok (NF Series 2023+)Adventure should never be limited by the fuel gauge. While these vehicles are marvels of technology and off-road capability, their standard 80-liter tank can prove insufficient on long journeys, expeditions into remote areas, or when towing heavy loads. Replacement Tank LONG RANGE AUTOMOTIVE (LRA) of 140L is the ultimate solution to overcome this limitation. By replacing your standard tank with this high-capacity 140-liter model, you get an impressive increase in 75% of your fuel volumeImagine traveling more than 1665 km with a single tankful (based on an average consumption of 8.4 L/100 km). It's the freedom to cross wild spaces without the anxiety of running out of fuel, or simply the comfort of not having to stop at the pump every week on your daily commute.

Australian Expertise LRA T125CQ Aluminized Steel

The brand LRA (LONG RANGE AUTOMOTIVE) is a true legend in the 4x4 world. Proudly manufactured in Australia since 1989, these tanks are designed to withstand the harshest Outback conditions. This specific model is made from2 mm thick aluminized steel (grade T125CQ)This material offers superior impact and corrosion resistance compared to original plastic tanks or standard steel. Furthermore, it is finished with a "Hammertone" silver enamel paint for long-lasting surface protection. The tank's interior is equipped with a complete partitioning (baffling)These internal baffles are essential: they prevent the fuel from sloshing violently during braking, acceleration or technical crossings, thus ensuring vehicle stability and protecting the tank structure against mechanical stresses.

Perfect Integration: Ground Clearance and Spare Wheel Preserved

One of the biggest challenges when installing a large-capacity tank is not compromising the vehicle's off-road capabilities. The tank design LRA For the Ranger PY and Amarok NF, it's an engineering masterpiece. It installs in place of the original tank, on the left side of the driveshaft, while retaining the standard ground clearance of the vehicle. You won't lose any off-road capability. More importantly, this tank was designed not to not require moving the spare wheelYou keep your wheel under the bed, in its factory position. Compatible with the following engines: 4-cylinder Bi-Turbo and the powerful V6 3.0L DieselThis tank uses the original filling point, making operation at the pump as simple as before, but much less frequent. Whether you're into sightseeing, heavy towing, or pure overlanding, this is the most cost-effective investment for your peace of mind.

Essential Information

• Brand : LRA (LONG RANGE AUTOMOTIVE- Made in Australia.
• Tank Type: Replacement (Replaces the original tank).
• Total Capacity: 140 Liters (75% increase compared to the original).
• Material : 2 mm aluminized steel (T125CQ) with Hammertone paint.
• Vehicle Compatibility:
  • Ford Ranger (PY Series): Year 2022 to Present.
  • Volkswagen Amarok (NF Series): Year 2023 to Present.
• Engine Compatibility: Diesel 2.0L Bi-Turbo & 3.0L V6.
• Facility : Left side of the driveshaft.
• Assembly Time: Approximately 3 hours.
• Spare wheel: No relocation required (remains in original location).
• Ground clearance: Preserved (identical to the standard).
• Guarantee : 3 years on the tank, 1 year on the parts.
• Kit Contents: All necessary assembly hardware included.
• Technical note: If your vehicle is fitted with a flatbed (Tray) instead of the original tipper, a modification of the filler neck may be required.

Do I need to move my spare wheel to install this 140 tank?L ?

No, that's one of the great advantages of the design LRAUnlike some auxiliary tanks that require moving the spare wheel onto a rear carrier or into the bed, this replacement model is streamlined to fit perfectly under the chassis while leaving the spare wheel in its original location. Therefore, you do not lose any loading space in the truck bed.

Does the installation change the vehicle's ground clearance for off-road use?

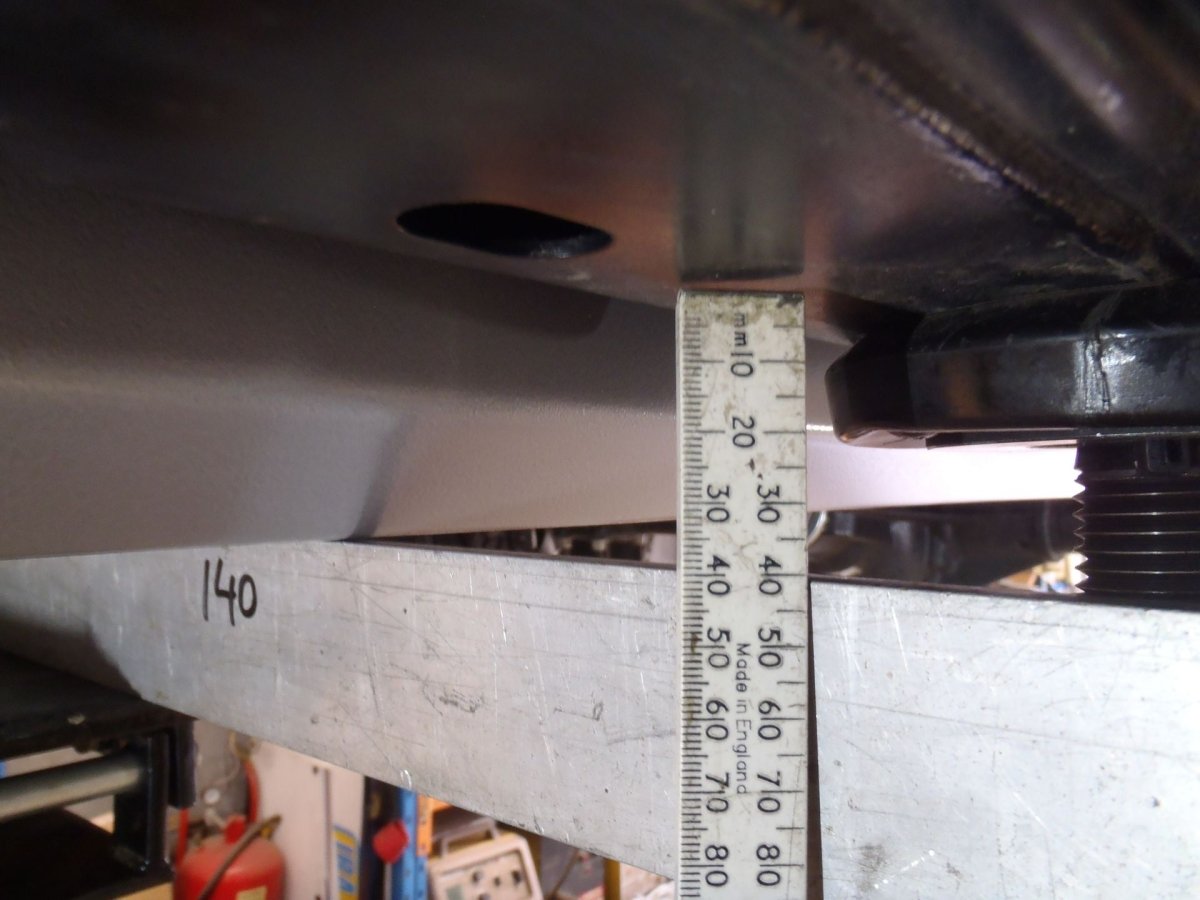

The tank was designed to maintain the standard ground clearance of the vehicle. Although it offers almost double the capacity of the original (140L against 80LIts shape follows the contours of the chassis so as not to protrude below the vulnerable original components. You can continue to enjoy off-road and obstacle course riding without worrying about snagging the fuel tank more easily than with the factory model.
