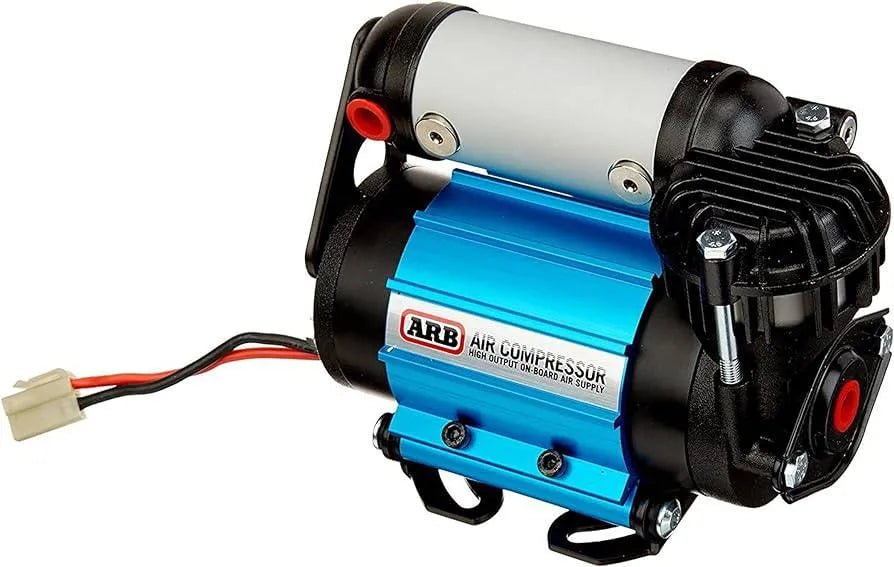

The ARB CKMA12 compressor - For Differential Lock (Air Locker) or Tire Inflation (only)

THE compressor ARB CKMA12 is the most popular in our range. It has been designed entirely with high-quality lightweight materials and is available in portable and vehicle-mounted configurations. With a class-leading flow rate, this compressor has been specifically designed for Air Locker activation (on-board model), rapid tire inflation, and a range of other functions, whether for work or leisure. The vehicle-mounted kit comes with a complete wiring harness and mounting hardware for easy installation.

ADDITIONAL FEATURES

  • Sealed to resist moisture and dust
  • Hard anodized cylinder bore to reduce friction
  • Teflon-impregnated carbon fiber piston seal for maximum worry-free life
  • Anodized mounting bracket dissipates engine heat and allows the compressor to be repositioned 180 degrees on vehicle-mounted models
  • Quality components for quiet operation and extra long life
  • Constructed entirely with high strength engineered lightweight materials
  • Equipped with a safety valve against overpressure
  • The engine is thermally protected against damage due to extreme temperatures
  • Equipped with a high capacity maxi fuse for professional in-line circuit protection
  • On-board model available in 12V or 24V configuration

Technical Characteristics:

  • Supply voltage: 12 V or 24 V
  • Consumption without load: 13A
  • Consumption under load: 22.9A
  • Unloaded airflow: 75.1L/m
  • Airflow under load: 61.6L/m
  • Dimensions: H 142 x L 190 x l 96 mm
  • Poids: 4.5 kgs
